PC MAX series Online HF UPS 6-10kVA, with 1.0PF

  • 1
  • 2
  • 3

Brand Name : HRD/OEM

Model Number : PCM6K,PCM10K

Certification : CE,ISO9001

Place of Origin : Shenzhen China

MOQ : 10PCS

Price : 360-680USD

Supply Ability : 500pcs/day

Delivery Time : 3-4 weeks after down payment

Packaging Details : 1PCS/1CTN,STANDARD FOR EXPORT

Color : black

Type : ONLINE HF UPS

Control : DSP with advanced 3 level inverter

Efficency : 95% @line mode

Input : 100-300Vac,40-70Hz

Communication : RS232+USB

Optional : SNMP card, AS400, MB breaker

Warranty : 18months after shipment

PF : 1.0

Charger : 1-12A selectable

Phase : single phase

DC : 192/240Vdc

Output : 220/230/240Vac

Contact Now

Power Castle MAX Series 6-10kVA, with output PF 1.0

  1. DSP control, with excellent performance and comprehensive protections

2. Output power factor 1.0, offering more stronger load capability

3. Advanced 3 level inverter technology, 95% efficiency,saving electricity cost

4.Ultra Wide Input: 120V-300Vac , well compatible with Gen-set

5. PCB with conformal coating for critical environment

6. EPO (emergency power off) and ECO function

7. Compact design to save installation space

8. Configurable output:220/230Vac with LCD screen

9. AC and cold start function

10.Default RS232& USB interface , SNMP card (optional)

11. Big capacity ABM charger 1-12A, adjustable

12. Standard model with external battery interface for extending back up time

13. Battery pack available

14. Simple design for fast and easy maintenance

15. Intelligent fan running, varying according to load and temperature

16. Default battery breaker for safety and convenience

17. Manual bypass (optional)

Technical Specification:

ModelPCMAX 6KLPCMAX6KSPCMAX10KLPCMAX10KS
Phase1phase 2wire+PE
Capacity6kVA/6kW10kVA/10kW
Input
Nominal Input Voltage220/230/240VAC
Input Voltage Range110V~300V Half load 176V~300V Full Load
Input Frequency Range50/60Hz+/-10%
Input Power Factor0.99 @Full load
Output
Output Voltage230V(220/240/208V Selectable)
Output Voltage Regulation1%
Output Frequency (Sync.Mode)46Hz~54Hz/56Hz~64Hz
Output Frequency (Bat.Mode)50Hz+/-0.05Hz 60Hz+/-0.05Hz
Output THDv%≤2% linear Load, ≤4% Non-linear Load
Overload

AC Mode: 10mins@105%-125%,30S 125%-150%,500ms@>150%;

Battery Mode:1mins@105%-125%,10S 125%-150%,500ms@>150%;

Output WaveformPure Sinewave
Transfer Time
Line mode ↔ Bat Mode0ms
Inv ↔ Bypass Mode<4ms
Efficiency
AC-->ACMax.95%
ECO98%
Battery ModeMax.94.5%
Battery & Charger
Battery Voltage/Capacity16 x 12V/7AH144V/192V/240 external battery16 x 12V/9AH192V/240V external battery*
Battery TypeValve Regulated Maintenance Free Lead Acid (VRLA) for Standard Model with internal battery
Recharge time~7HoursSubject to external battery config~7 HoursSubject to external battery config
Max recharge current1A1-12A adjustable1A1-12A adjustable
Floating charge Votlage218.4V218.4V/273V218.4V218.4V/273V
Display
DisplayLED/LCD(option)
Buzzer AlarmBat.Mode/Bat.Low/OverLoad/Fault
Communication PortRS232/ SNMP(option)/USB(option)
Physical
Form factorTower / Rack
Tower(W*H*D)MM200*400*800200*400*360200*400*800200*400*360
Rack438mm(w) x 88mm(2U) x 500mm(D)
Weight57.0kg18kg67kg20.0kg
Environment
Humidity5~97% (Non condensing)
Operating Ambient temperature0~40
*Specificaiton is subject to change without further notice;

Note: “S” refers to “Standard model”,”L” refers to “Long-run model”

All specifications subject to change without further notice; customized specifications are acceptable

All specifications subject to change without further notice; customized specifications are acceptable.Note: “S” refers to “Standard model”,”L” refers to “Long-run model”

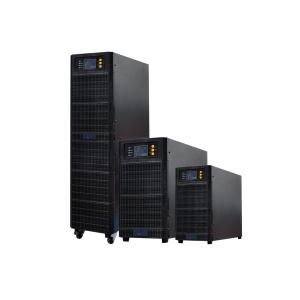

Wholesale PC MAX series Online HF UPS 6-10kVA, with 1.0PF from china suppliers
